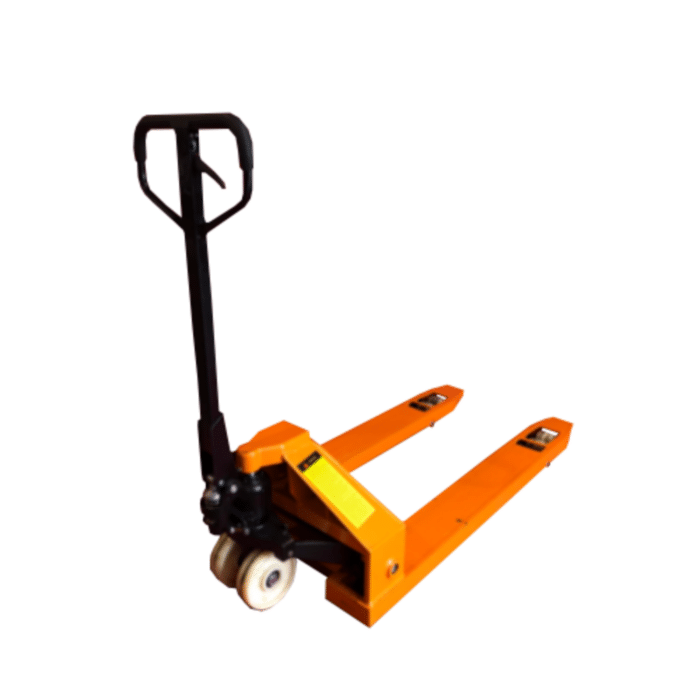

Standard Pallet Truck – 5000kg

Top quality standard size pallet truck suitable for lifting and moving all standard sized pallets. Available in light and heavy duty load carrying capacities. Fitted with nylon wheels with the option of polyurethane to prevent the marking scratching of flooring.

Download PDF
SKU: 0009 Categories: , , ,

Description

MODEL HD50
CAPACITY 5000kg
LENGTH OF FORKS 1200mm
WIDTH ACROSS THE FORKS 685mm
LIFT HEIGHT 200mm
LOWERED HEIGHT 85mm
OVERALL LENGTH 1700mm
OVERALL WIDTH 685mm
OVERALL HEIGHT 1200mm
STEERING WHEELS: TRACK WIDTH 180mm
BOGIE ROLLERS: TRACK WIDTH 450mm
WHEEL BASE 1200mm
TURNING RADIUS 210mm Arc
STEERING WHEEL 175mm x 55mm Nylon
DOUBLE BOGIE ROLLERS 70mm x 80mm
NET WEIGHT 146kg
