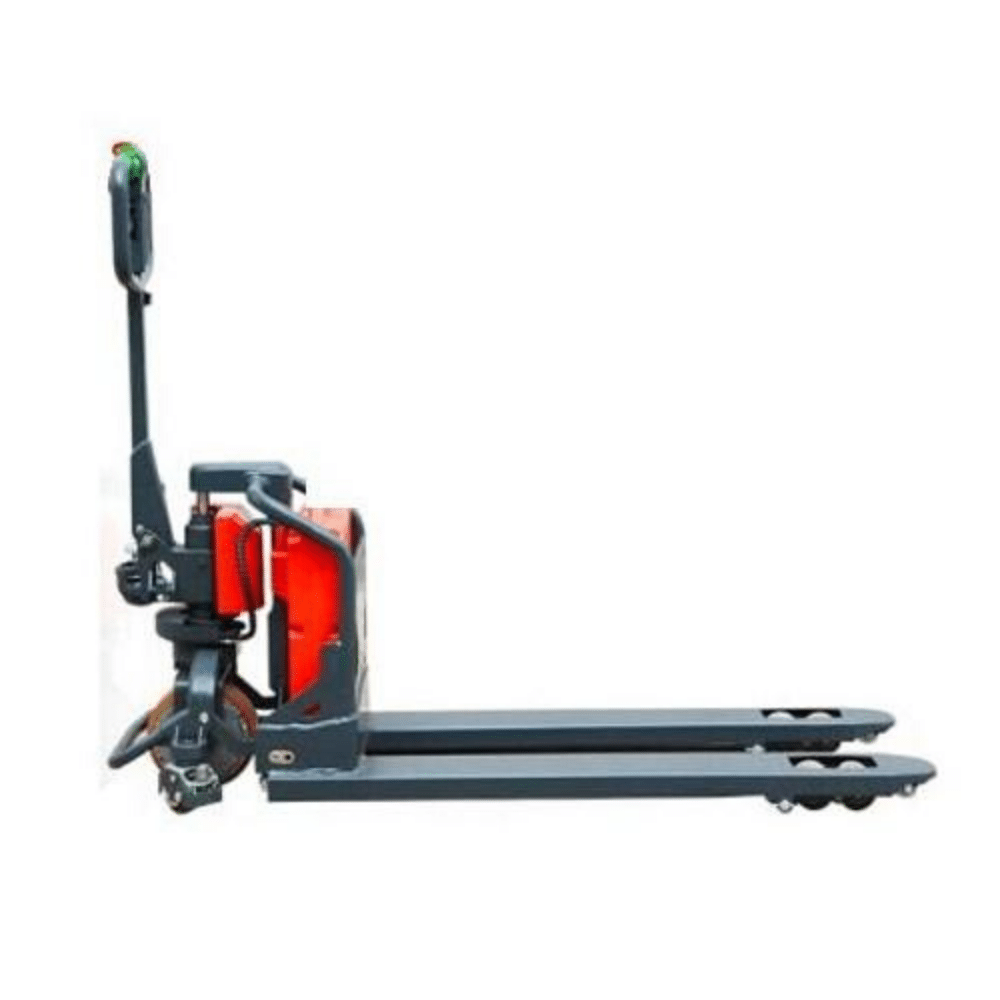

Battery Pallet Jack Light Duty – 1500kg

Home/Battery, Pallet Jack, Semi-Electric/Battery Pallet Jack Light Duty – 1500kg

Battery Pallet Jack Light Duty – 1500kg

Call for Price

The chassis adopts a skeleton structure reducing the total weight of the truck, while ensuring structural strength and integrity. This provides increased flexibility and improved operations. Easily exchangeable 48V Battery pack.

SKU: 0178 Categories: , ,

Description

MODEL LD BATTERY PALLET JACK
CAPACITY 1500kg
LOAD CENTRE 600mm
WHEEL BASE 165mm
DOUBLE BOGIE ROLLERS 80mm x 70mm
STEERING WHEEL 230mm x 61mm
ADDITIONAL WHEEL 80mm x 30mm
TRACK WIDTH: STEERING WHEEL 420mm
TRACK WIDTH: BOGIE ROLLERS 380mm
LIFTING HEIGHT 115mm
LOWERED HEIGHT 85mm
FORK LENGTH 1150mm
WIDTH ACROSS THE FORKS 685mm
OVERALL LENGTH 1650mm
OVERALL WIDTH 680mm
OVERALL HEIGHT 1260mm
GROUND CLEARANCE 37mm
MINIMUM TURNING RADIUS 1450mm
TRAVEL SPEED: LADEN/UNLADEN 4.8km/h / 5.0km/h
LIFT SPEED: LADEN/UNLADEN 0.032m/s / 0.045m/s
LOWERING SPEED:LADEN/UNLADEN 0.03m/s / 0.03m/s
DRIVE MOTOR 0.5kW
BATTERY VOLTAGE/CAPACITY 48V/20Ah
TYPE OF DRIVE CONTROL AC Speed Control
